This HPOP oil hoses set with crossover is designed for 1994–1997 OBS Ford 7.3L Powerstroke engines, with the passenger side serving as a direct replacement for the factory hose and the driver side shortened to utilize a closer port in the head. The hoses are rated for working pressures of 5,800 psi with a minimum burst pressure of 23,200 psi and operate across a temperature range of -50°F to 260+°F. The crossover line equalizes oil rail pressure between the driver and passenger side cylinder heads, helping provide a smoother running engine, especially at idle.

Fitment

• 1994–1997 Ford F-250, F-350, and E-350 (7.3L Powerstroke diesel)

Product Details

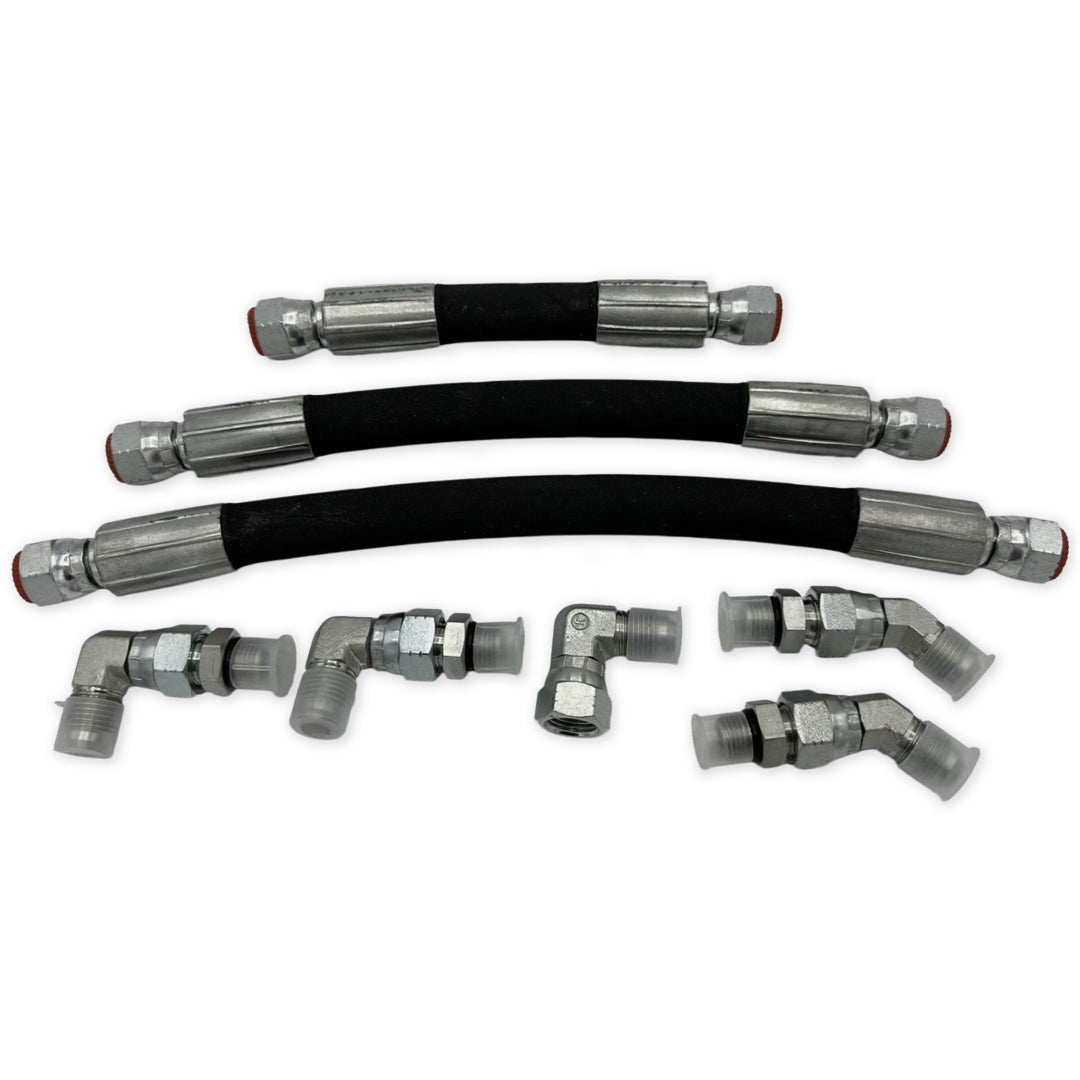

• Configuration: Three-piece set includes one long heavy duty HPOP hose, one medium heavy duty HPOP hose, and one heavy duty oil crossover hose, plus two 45-degree elbow connections and three 90-degree elbow connections with straight fittings
• Operating Pressure: 5,800 psi working pressure; 23,200 psi minimum burst pressure
• Temperature Range: -50°F to 260+°F
• Fitment Notes: Driver-side hose is shorter for optimal crossover alignment; fits trucks with factory or deleted fuel bowls
• Fittings: All fittings are forged steel with clear zinc plating to prevent rust or corrosion; Viton o-rings installed on all fittings with 90 duro rating to withstand high pressures
• Heat Protection: Includes heat shield providing 2,000°F protection
• Hose Construction: Multi-layer protection featuring synthetic rubber, high-strength steel braid, oil-resistant rubber, plus a protective shell

Installation

HPOP hose replacement is a straightforward job that most DIY-capable owners can complete in one to two hours. Install torque specification is 235 to 265 inch-lbs using Method One, or 1.25 flats from wrench resistance (FFWR method, which is preferred).

Check local emissions regulations before purchase. Professional installation is recommended.
